Lecture#

Prerequisites#

Ensure you have followed the simulation instructions and have everything set up before running any code in this lecture.

Lifecycle Nodes#

A lifecycle node is a ROS 2 node that follows a standardized state machine. Rather than starting immediately when launched, it waits for explicit transition commands, giving the system precise control over initialization order, resource allocation, and shutdown.

Resources

State Machine#

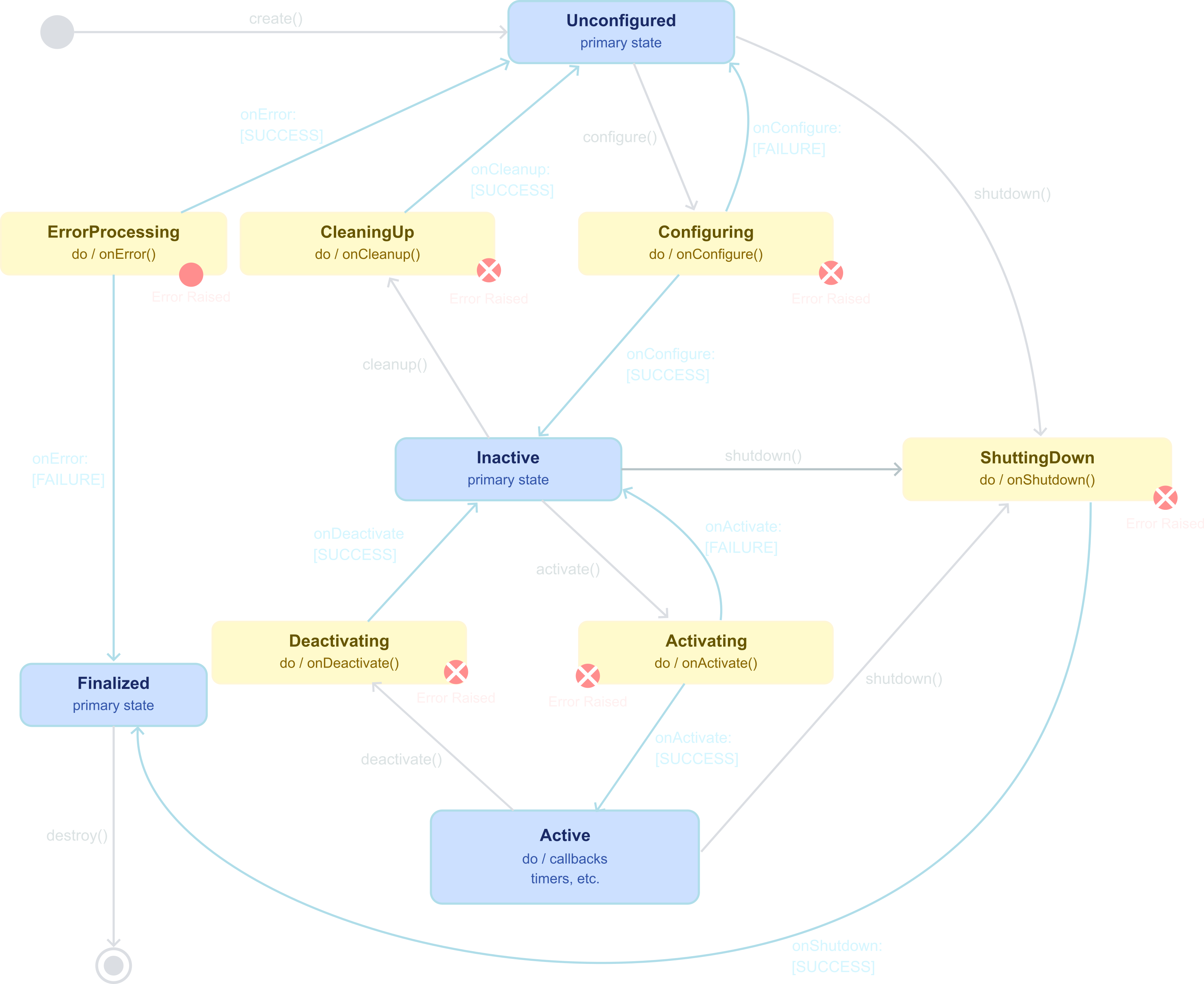

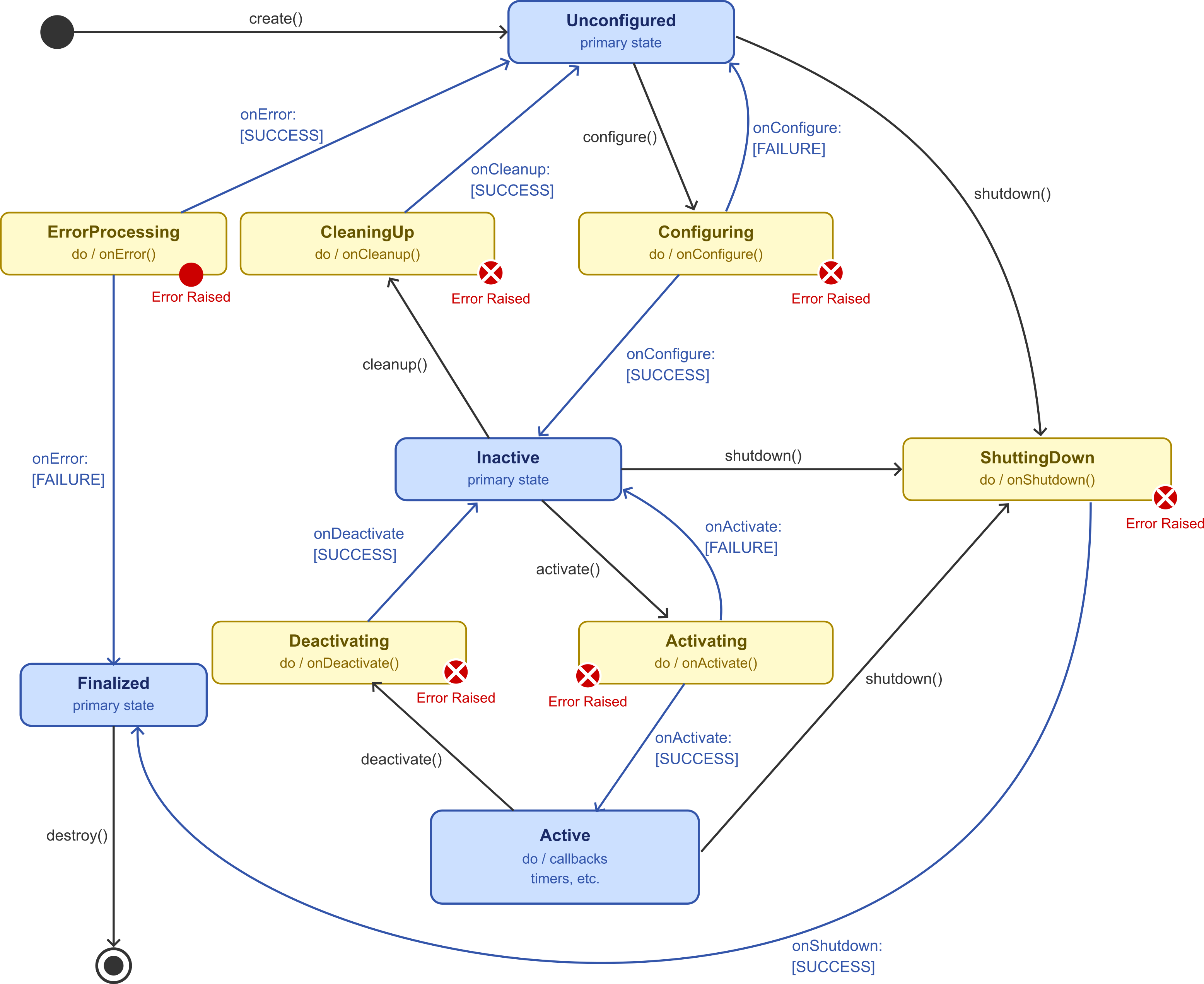

A lifecycle node moves through four primary states. Each state is entered via a named transition command that invokes a callback your node overrides.

Primary States

A lifecycle node is always in exactly one primary state. The state determines what the node is allowed to do and what resources it holds.

Table 38 The four primary states and what the node does in each#
State	What the node does here
Unconfigured	Exists but holds no resources. Waiting to be configured.
Inactive	Resources allocated (publishers, parameters). Not yet processing data.
Active	Fully operational. Publishers enabled, timers running, data flowing.
Finalized	Cleaned up and ready to be destroyed. No further transitions possible.

Note

A node starts in Unconfigured the moment it is created. It stays there indefinitely until a configure command is issued. No publishers, timers, or subscriptions exist at this point.

Transition Commands

Each transition command moves the node from one primary state to another and invokes a specific Python callback that your node overrides.

Table 39 Available transition commands, the states they connect, and the callback each invokes#
Command	From	To	Callback
`configure`	Unconfigured	Inactive	`on_configure`
`activate`	Inactive	Active	`on_activate`
`deactivate`	Active	Inactive	`on_deactivate`
`cleanup`	Inactive	Unconfigured	`on_cleanup`
`shutdown`	Any	Finalized	`on_shutdown`

Note

Transitions must follow the state machine strictly. You cannot jump from Unconfigured directly to Active: configure then activate must be issued in order. Skipping configure is why ros2 lifecycle set returns Transition failed.

Why Use Lifecycle Nodes?

Controlled initialization order: a sensor driver stays in Inactive until a dependent processing node finishes configuring, preventing race conditions at startup.
Resource management: publishers, timers, and connections are created in on_configure and released in on_cleanup, so resources are never held when the node is not active.
Runtime pause and resume: deactivate a node during calibration or reconfiguration without killing and restarting it.
System coordination: a lifecycle manager issues transitions in a defined order and can shut down the entire stack cleanly on error.

Note

Nav2 runs map_server, amcl, planner_server, controller_server, and bt_navigator as lifecycle nodes, all managed by lifecycle_manager.

Implementing a Lifecycle Node#

A lifecycle node in Python extends LifecycleNode and overrides one callback per transition. Each callback must return TransitionCallbackReturn.SUCCESS or TransitionCallbackReturn.FAILURE.

Scenario

A lifecycle node, sensor_publisher, publishes std_msgs/String messages on the sensor_data topic at 1 Hz, but only while in the Active state.

The publisher is allocated on configure and released on cleanup; the timer is created on activate and cancelled on deactivate.

Each message carries an incrementing counter so consumers can detect gaps caused by deactivation.

Note

State transitions are driven externally from the CLI with ros2 lifecycle set, so the node reacts to operator commands rather than cycling itself.

Class Declaration

import rclpy
from rclpy_lifecycle import LifecycleNode, TransitionCallbackReturn
from std_msgs.msg import String

class SensorPublisher(LifecycleNode):
    def __init__(self):
        super().__init__('sensor_publisher')
        self._publisher = None
        self._timer = None
        self._counter = 0

LifecycleNode is imported from rclpy_lifecycle, part of the standard ROS 2 Jazzy installation.
Publishers and timers are declared as None here. They are created in on_configure, not in __init__, so they are only allocated when explicitly requested.
TransitionCallbackReturn carries three values: SUCCESS, FAILURE, and ERROR. A callback returning FAILURE aborts the transition and keeps the node in its current state.

on_configure: Allocate Resources

def on_configure(self, state):
    self.get_logger().info(f'Configuring from: {state.label}')
    try:
        self._publisher = self.create_lifecycle_publisher(String, 'sensor_data', 10)
    except Exception as e:
        self.get_logger().error(f'Configuration failed: {e}')
        return TransitionCallbackReturn.FAILURE
    return TransitionCallbackReturn.SUCCESS

Use create_lifecycle_publisher instead of create_publisher. A lifecycle publisher is created here but remains inactive until on_activate is called.
An inactive lifecycle publisher silently discards any messages published to it, preventing data from being sent before the node is fully ready.
Returning FAILURE on a recoverable problem keeps the node in Unconfigured; the operator can fix the issue and reissue configure.
Do not create timers here. Timer callbacks would fire even while the node is Inactive.

Failure vs. Error

A transition callback returns one of three values from TransitionCallbackReturn. The choice determines what state the node ends up in.

Table 40 Return values from a transition callback and their effect on the state machine#
Return	Meaning	Resulting state
`SUCCESS`	Transition completed correctly.	Moves to the target state.
`FAILURE`	Transition could not complete, but the node is in a clean, recoverable state.	Stays in the previous state. The transition can be retried.
`ERROR`	Something unexpected happened; the node may be in an inconsistent state.	Invokes `on_error`. The default `on_error` returns `FAILURE`, which moves the node to Finalized.

When to return ``FAILURE``: parameter missing, hardware not yet responding, expected file not found. Nothing was half-allocated.
When to return ``ERROR``: an exception was raised after partial setup, leaving some resources allocated and others not.
Overriding on_error is optional but useful: cleaning up partial state and returning SUCCESS sends the node back to Unconfigured for a fresh retry, instead of straight to Finalized.

on_activate: Start Processing

def on_activate(self, state):
    super().on_activate(state)           # enables the lifecycle publisher
    self._timer = self.create_timer(1.0, self._publish_sensor_data)
    return TransitionCallbackReturn.SUCCESS

def _publish_sensor_data(self):
    msg = String(data=f'Reading {self._counter}')
    self._publisher.publish(msg)
    self._counter += 1

Note

Always call super().on_activate(state) before publishing. The base class activates the lifecycle publisher; messages sent before this call are silently dropped.

on_deactivate: Stop Processing

def on_deactivate(self, state):
    if self._timer is not None:
        self._timer.cancel()
        self._timer = None
    super().on_deactivate(state)         # disables the lifecycle publisher
    return TransitionCallbackReturn.SUCCESS

Cancel the timer first so no further callbacks fire, then call super().on_deactivate(state) to disable the publisher.
The publisher object still exists after deactivation. It is re-enabled by the next on_activate call without needing to be recreated.

on_cleanup: Release Resources

def on_cleanup(self, state):
    self._publisher = None
    self._counter = 0
    return TransitionCallbackReturn.SUCCESS

def main(args=None):
    rclpy.init(args=args)
    rclpy.spin(SensorPublisher())
    rclpy.shutdown()

Setting self._publisher = None drops the only reference, allowing the publisher to be garbage-collected. The node returns to Unconfigured and can be reconfigured.

Demonstration: Changing States with the CLI

Use ros2 lifecycle list /sensor_publisher to output a list of available transitions.

Table 41 Driving the lifecycle node from the CLI#
Term	Command	Effect
T1	`ros2 run lifecycle_demo sensor_pub_exe`	Start the node (Unconfigured)
T2	`ros2 lifecycle nodes`	Output a list of nodes with lifecycle
T2	`ros2 lifecycle get /sensor_publisher`	`unconfigured [1]`
T2	`ros2 lifecycle set /sensor_publisher configure`	Inactive: publisher created, no data
T2	`ros2 lifecycle set /sensor_publisher activate`	Active: timer starts, data flows
T3	`ros2 topic echo /sensor_data`	Confirm data is being published
T2	`ros2 lifecycle set /sensor_publisher deactivate`	Pause: timer cancelled, publisher disabled
T2	`ros2 lifecycle set /sensor_publisher cleanup`	Release resources, back to Unconfigured

Experiment

After cleanup the node is Unconfigured again. Issue configure and activate a second time. Does the counter reset? What does this tell you about when on_cleanup runs relative to __init__?

Programmatic State Changes#

Instead of waiting for an operator, a lifecycle node can drive its own transitions by calling the change_state service that every lifecycle node automatically advertises.

Scenario

A lifecycle node, self_cycling_node, drives its own state transitions on a 5 second timer instead of waiting for CLI commands. It walks through the full sequence indefinitely:

\[\text{Unconfigured} \xrightarrow{\texttt{configure}} \text{Inactive} \xrightarrow{\texttt{activate}} \text{Active} \xrightarrow{\texttt{deactivate}} \text{Inactive} \xrightarrow{\texttt{cleanup}} \text{Unconfigured} \to \ldots\]

The publish behavior mirrors sensor_publisher: a std_msgs/String publisher on sensor_data allocated on configure, a 1 Hz publish timer started on activate, and an incrementing counter reset on cleanup.

Note

The cycling timer keeps running across all four states. Transitions are requested by the node calling its own change_state service.

Key Insight: The Service Already Exists

Note

Every node that extends LifecycleNode automatically advertises a service of type lifecycle_msgs/srv/ChangeState at /<node_name>/change_state. We do not create the service; we only need a client to call it.

Calling this service programmatically is exactly equivalent to running ros2 lifecycle set from the CLI; the CLI itself is just another client of the same service.
The request payload is a Transition message whose id field selects which transition to request (TRANSITION_CONFIGURE, TRANSITION_ACTIVATE, …).
The response carries a single success boolean: True if the transition callback returned SUCCESS, False otherwise.

Class Declaration: Cycle List and Client

class SelfCyclingNode(LifecycleNode):
    _CYCLE = [
        Transition.TRANSITION_CONFIGURE,
        Transition.TRANSITION_ACTIVATE,
        Transition.TRANSITION_DEACTIVATE,
        Transition.TRANSITION_CLEANUP,
    ]

    def __init__(self):
        super().__init__('self_cycling_node')
        self._publisher = None
        self._timer = None
        self._counter = 0
        self._step = 0
        self._cli = self.create_client(ChangeState, f'/{self.get_name()}/change_state')
        self._cycle_timer = self.create_timer(5.0, self._advance_state)

_CYCLE encodes the transition order; _step is the index advanced on every tick.
The client target is built with self.get_name() so the path stays consistent if the node is later renamed (e.g. via remap).
_cycle_timer is a regular timer (not lifecycle-managed) and keeps firing in every state.

Timer Callback: Request the Next Transition

def _advance_state(self):
    if not self._cli.wait_for_service(timeout_sec=1.0):
        self.get_logger().warn('change_state service not available')
        return

    transition_id = self._CYCLE[self._step % len(self._CYCLE)]
    req = ChangeState.Request()
    req.transition.id = transition_id

    future = self._cli.call_async(req)
    future.add_done_callback(self._on_change_state_done)

    self._step += 1

self._step % len(self._CYCLE) wraps the index so the cycle repeats forever.
The request payload is a ChangeState.Request() whose transition.id field selects the next transition.
call_async avoids deadlock: the timer callback runs inside the executor, and a blocking call would prevent the same executor from servicing the response.

Done Callback: Inspect the Result

def _on_change_state_done(self, future):
    result = future.result()
    if result is not None and result.success:
        self.get_logger().info('Transition succeeded.')
    else:
        self.get_logger().error('Transition failed.')

Registered via future.add_done_callback(...) in _advance_state; the executor invokes it once the service response arrives.
future.result() returns None if the call was cancelled or failed before reaching the server, so it must be checked before reading result.success.
result.success is True only if the corresponding lifecycle callback (on_configure, on_activate, …) returned TransitionCallbackReturn.SUCCESS.

Lifecycle Callbacks

The four transition callbacks are identical to sensor_publisher; only the trigger differs.

def on_configure(self, state):
    ...

def on_activate(self, state):
    ...

def on_deactivate(self, state):
    ...

def on_cleanup(self, state):
    ...

Demonstration

Table 42 Automated state changes#
Term	Command	Effect
T1	`ros2 run lifecycle_demo self_cycling_exe`	Start the node; cycling begins after 5 s
T2	`ros2 lifecycle get /self_cycling_node`	Watch the state advance every 5 s
T3	`ros2 topic echo /sensor_data`	`/sensor_data` appears and disappears with each activate/deactivate
T1	All four transitions are reported in the node’s own log output

Note

Full cycle: Unconfigured \(\xrightarrow{5\,\text{s}}\) Inactive \(\xrightarrow{5\,\text{s}}\) Active \(\xrightarrow{5\,\text{s}}\) Inactive \(\xrightarrow{5\,\text{s}}\) Unconfigured \(\xrightarrow{5\,\text{s}}\) …

Experiment

Modify the _CYCLE list to skip TRANSITION_DEACTIVATE and TRANSITION_CLEANUP so the node only cycles between configure and activate. What happens? Then add Transition.TRANSITION_SHUTDOWN at the end of the original list and observe the result.

ROS 2 Bags#

A ROS 2 bag is a file that records messages published on any set of topics, along with their timestamps, so they can be replayed later exactly as they were produced. Bags are the primary tool for capturing real or simulated robot runs and replaying them offline for debugging, algorithm development, and regression testing.

Resources

Common Use Cases#

Algorithm development: record sensor data from Gazebo, then iterate on a perception or planning algorithm by replaying the same bag repeatedly without restarting the simulation.
Debugging: capture a run where the robot behaved unexpectedly, then replay it with additional subscribers or visualization tools attached.
Regression testing: keep a reference bag and replay it against a new version of the code to check that outputs have not changed.
Dataset creation: record annotated sensor streams for training or evaluating machine learning models.
Remote operation: record a run on a robot that is not always accessible, then analyze the data back at the workstation.

Note

During replay, ROS 2 republishes messages on the same topics they were recorded from, with the original timestamps preserved. Any node that subscribes to those topics receives the replayed data exactly as if the original publisher were still running.

Storage Formats#

ROS 2 bags support pluggable storage backends. The two formats available in Jazzy are SQLite3 (default) and MCAP. Choosing the right format matters for large navigation datasets.

Table 43 SQLite3 vs. MCAP#
	SQLite3	MCAP
Default	Yes	No (requires plugin install)
File extension	`.db3`	`.mcap`
Performance	Good for low-bandwidth topics	Better for high-rate topics (e.g., LiDAR)
Random access	Slow on large files	Fast seek to any timestamp
Tooling	Standard SQL inspection	Foxglove Studio, mcap CLI
When to use	Short runs, text topics, parameters	Long navigation runs, sensor-heavy bags

Install the MCAP plugin:

sudo apt install ros-jazzy-rosbag2-storage-mcap

Note

MCAP is the recommended format for navigation bags that include /scan at high rates. A 10-minute navigation run recording LiDAR at 10 Hz can easily exceed 1 GB with SQLite3 due to indexing overhead; MCAP compresses significantly better and allows fast scrubbing in Foxglove Studio.

Switching the Storage Format

Pass --storage to any ros2 bag command to select the backend:

Record with SQLite3 (default, no flag needed):
```
ros2 bag record -o my_bag /scan
```

Record with MCAP:

ros2 bag record -o my_bag --storage mcap /scan

Convert an existing SQLite3 bag to MCAP:

ros2 bag convert -i my_bag -o my_bag_mcap --output-storage mcap

Note

The bag directory always contains a metadata.yaml file that records the storage plugin used, the list of topics, message counts, and the time range. ros2 bag info reads this file and does not need the storage plugin to be installed.

Recording#

ros2 bag record subscribes to the specified topics and writes every incoming message to disk. Recording stops when you press Ctrl+C.

Useful Recording Options

Table 44 Useful flags for `ros2 bag record`#
Flag	Effect
`-o <name>`	Set the output directory name. Defaults to a timestamped name.
`-a`	Record all topics currently being published.
`--storage mcap`	Use MCAP instead of SQLite3.
`--max-bag-size <bytes>`	Split the bag into multiple files once the size limit is reached.
`--max-bag-duration <s>`	Split the bag by time duration instead of size.
`-e <regex>`	Record only topics matching a regular expression.

Note

Recording /tf_static requires special handling: it is a latched topic and its messages are only published once at startup. Always include /tf_static explicitly rather than relying on -a to catch it.

Recording a Navigation Run

Record the topics needed to reconstruct a full navigation run offline:

Table 45 Demonstration#
Term	Command
T1	`ros2 launch rosbot_gazebo husarion_world.launch.py rviz:=False use_sim:=True`
T2	`cd ~/enpm605_ws/src/lecture14/bag_demo/bags`
T2	`ros2 bag record -o nav_run --storage mcap /odometry/filtered /scan /cmd_vel /tf /tf_static /map`
T3	`ros2 launch nav_demo map_nav.launch.py mode:=navigation goal_source:=waypoints`
T2	`Ctrl + C` when the last waypoint is reached

Table 46 Topics recorded#
Topic	Message type	Why it is needed
`/odometry/filtered`	`nav_msgs/Odometry`	Robot pose and velocity estimates
`/scan`	`sensor_msgs/LaserScan`	LiDAR measurements for mapping and localization
`/cmd_vel`	`geometry_msgs/TwistStamped`	Velocity commands sent to the robot
`/tf`	`tf2_msgs/TFMessage`	Dynamic transforms
`/tf_static`	`tf2_msgs/TFMessage`	Static transforms
`/map`	`nav_msgs/OccupancyGrid`	Static occupancy grid published by `map_server`

Inspecting#

Before replaying a bag, inspect it to verify the recorded topics, message counts, time range, and storage format.

ros2 bag info nav_run

Check that all expected topics are present and their message counts are non-zero before replaying.
A count of zero on /tf_static usually means the static publisher was not running when recording started.

Replaying#

ros2 bag play republishes recorded messages on their original topics at the recorded timestamps, so any node subscribed to those topics receives the data as if the original publisher were running.

Basic Replay

ros2 bag play nav_run

Table 47 Useful replay options#
Flag	Effect
`--rate 0.5`	Replay at half speed. Useful for inspecting fast events.
`--start-offset <s>`	Skip the first n seconds before starting replay.
`--loop`	Repeat the bag indefinitely.
`--topics /scan`	Replay only a subset of recorded topics.
`--remap /scan:=/scan_bag`	Remap a topic during replay to avoid clashing with a live publisher.
`--clock`	Publish a `/clock` topic so nodes using sim time stay in sync.

Note

If the live system is also running (e.g., Gazebo is still open), replaying /tf and /cmd_vel will conflict with the live publishers. Either close the live system before replaying, or use --remap to redirect the replayed topics to different names.

Foxglove Studio#

Foxglove is a free, cross-platform visualization tool purpose-built for robotics. It opens MCAP bags directly (no conversion) and lets you inspect topics, plot signals, and render 3D scenes from a multi-panel layout, without writing any code.

Resources

What and Why#

Foxglove Studio is what most teams reach for when rqt and rviz2 stop scaling – it gives you many time-aligned views of the same recording in one window.

Native MCAP support – opens *.mcap files directly, no transcoding.
Multi-panel layouts – 3D, Plot, Image, Raw Messages, Diagnostics, Teleop, … all driven from the same timeline.
Offline or live – read a saved bag, or connect to a running ROS 2 system over the Foxglove WebSocket bridge.
Cross-platform – desktop app for Linux, macOS, and Windows, or run entirely in the browser at app.foxglove.dev (your bag stays local; nothing is uploaded).

Note

Foxglove and rviz2 solve overlapping problems. Use rviz2 when you want a quick 3D view of a live system; use Foxglove when you need to scrub through a recording, plot a signal, and inspect raw messages at the same time.

Installing and Launching#

Pick whichever install method you prefer (all three open the same app and read the same bags).

Option 1: Debian package (recommended on Ubuntu)
- Download the .deb from the Foxglove downloads page, then:
```
sudo apt install ./foxglove-studio-*-linux-amd64.deb
foxglove-studio &
```

Option 2: Snap

sudo snap install foxglove-studio
foxglove-studio &

Option 3: Browser (no install)
- Open https://app.foxglove.dev/. The bag file you choose is read locally in the browser (nothing is uploaded).

Note

The browser version requires Chrome/Edge/Firefox. Safari is not supported. For the best 3D performance on large bags, prefer the desktop app.

Loading the `nav_run` Bag#

From the welcome screen, choose “Open local file” and point Foxglove at the nav_run_0.mcap file inside the bag directory (not the directory itself).

File \(\to\) Open local file… \(\to\) nav_run_0.mcap
Foxglove parses the file in seconds and shows a timeline at the bottom with all recorded topics in the left sidebar.

Note

Foxglove can also open ROS 2 SQLite3 bags (*.db3) and ROS 1 bags (*.bag), but MCAP is the fastest and most fully featured.

Visualizing the Recording

Add multiple panels to visualize the results/outputs while the bag is playing. You can import the provided layout nav_run_layout.json.

Lecture#

Prerequisites#

Lifecycle Nodes#

State Machine#

Implementing a Lifecycle Node#

Programmatic State Changes#

ROS 2 Bags#

Common Use Cases#

Storage Formats#

Recording#

Inspecting#

Replaying#

Foxglove Studio#

What and Why#

Installing and Launching#

Loading the nav_run Bag#

This Page

Loading the `nav_run` Bag#
